Portal user guide

What each part of the CNA portal is for and how to get answers from it. For everyone who uses the portal, whatever their role.

The home view

The landing page when you sign in. It answers "is anything wrong right now?" across every service you have.

• Counts online: office sensors, end-user devices and servers currently reporting.
• Application averages: the average application response seen by each source, shown red, amber or green, so you can tell at a glance whether users are affected.
• Active alerts: everything currently firing that needs attention.
• Service-provider feeds: the latest status and news published by the providers your services depend on, so "is it us or them?" is answered in one place.
• Shortcuts to the office, end-user device and infrastructure views you subscribe to.

Office monitoring

Office views show what your sensors measure, either across all sites at once or for one site. Start with all sites to see whether a problem is local or general, then open a site from the list of offices.

Application response

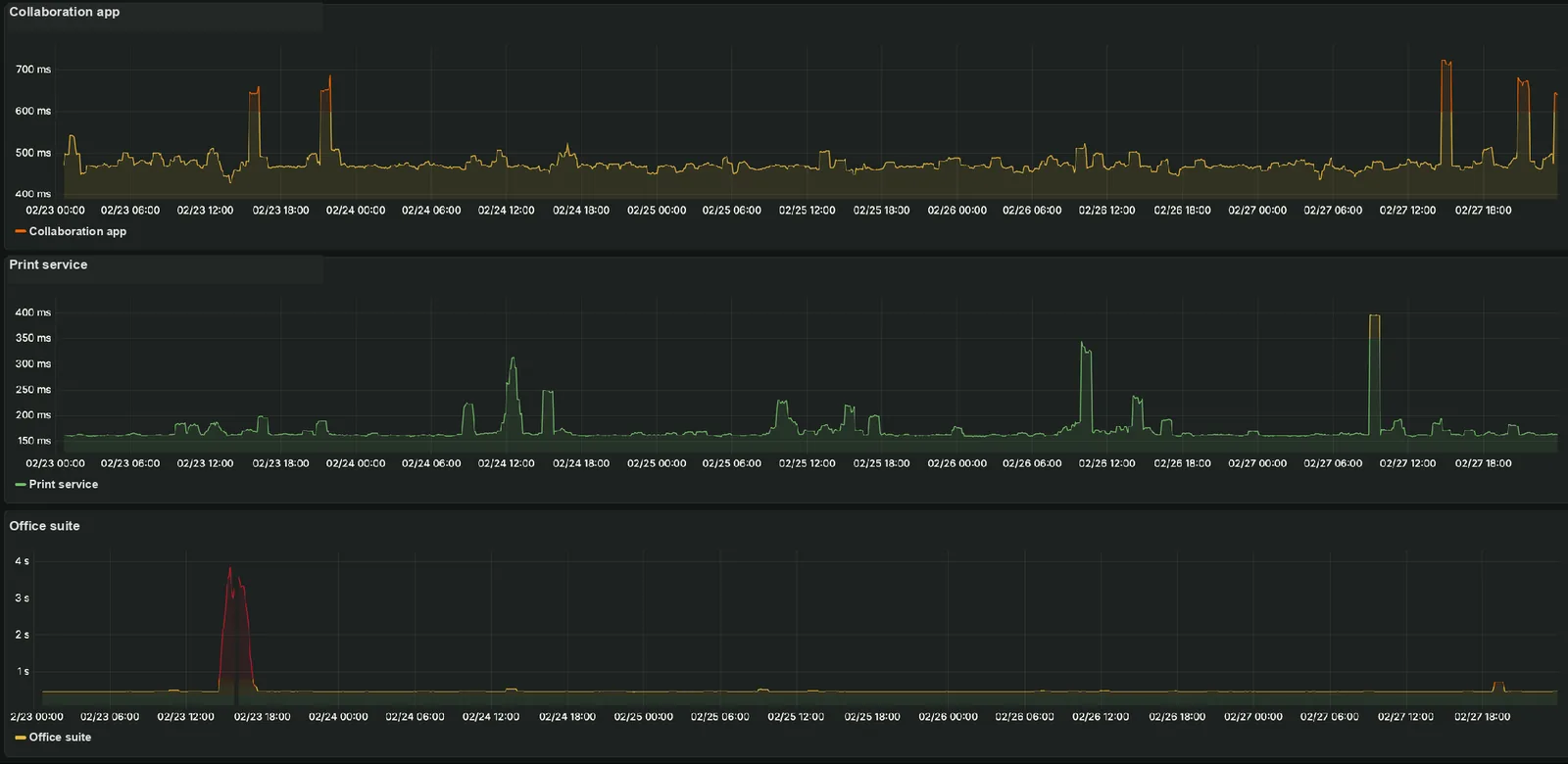

How long each application takes to respond to the sensors' web requests. Each sensor tests every configured application every two minutes. The view shows an average for each application, then a graph over time, so you can compare applications side by side.

For a single site, the application view also shows the ping response time and the network path to each application.

DNS

How long name lookups take from the sensors, as an average and over time. A timeline of lookup results shows problems at a glance:

The DNS response codes returned by the server are shown alongside.

WAN circuits

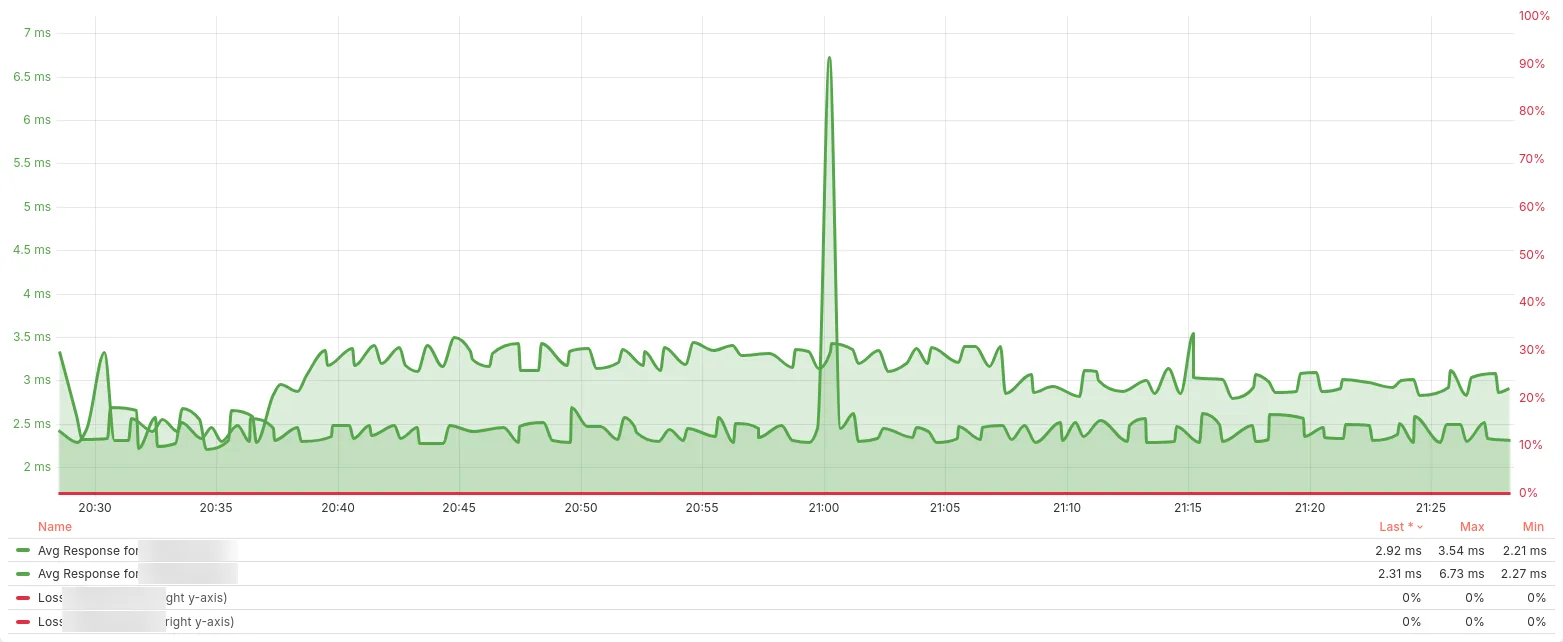

Each office circuit is probed from the cloud, looking back at the office's public IP address. It is the one measurement in CNA taken from outside your offices. For each circuit you see the average round-trip time and packet loss for the current period, the last 7 days and the last 30 days, then a graph with round-trip time in milliseconds on the left axis and packet loss as a percentage on the right.

Network path

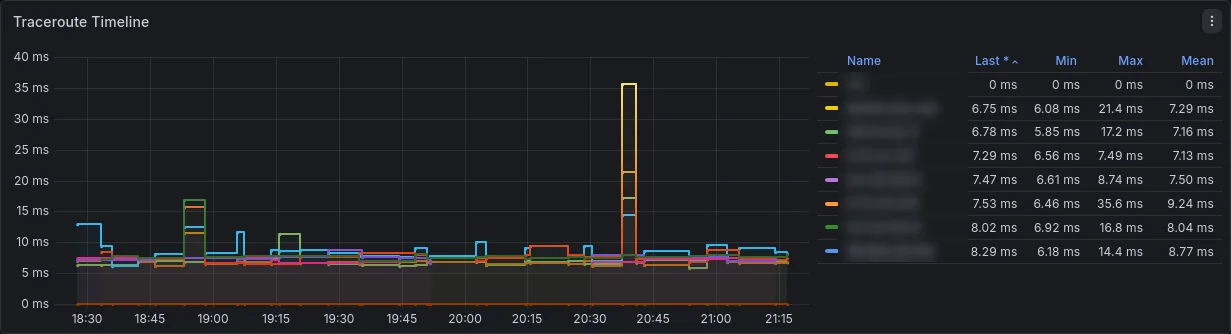

A hop-by-hop trace from the sensors to each application, with the latency at every hop. Use it to tell whether the delay starts inside the office, at your internet provider or at the application's edge, and hand the provider evidence rather than a complaint.

Wi-Fi

Each floor that has a wireless map has its own Wi-Fi view. Open it from the site.

The floor map

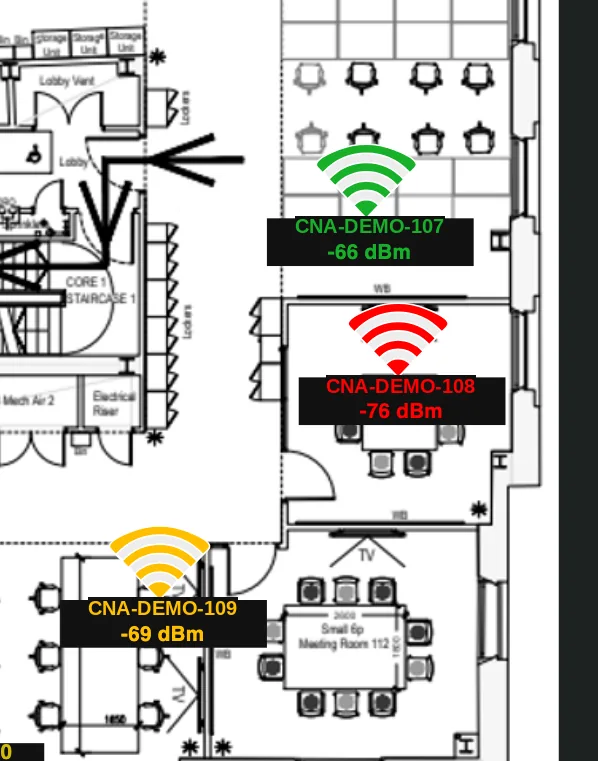

Your floor plan, with each sensor drawn where it sits and coloured by the signal it receives. The average signal strength and reception quality for the floor are shown with it.

Colour	Signal
Green	Above −67 dBm
Amber	−68 to −75 dBm
Red	Below −75 dBm

Use the time slider under the map to move back and forward through the selected time range, for example to replay a bad morning.

Select a sensor's label to open its detail.

Sensor detail

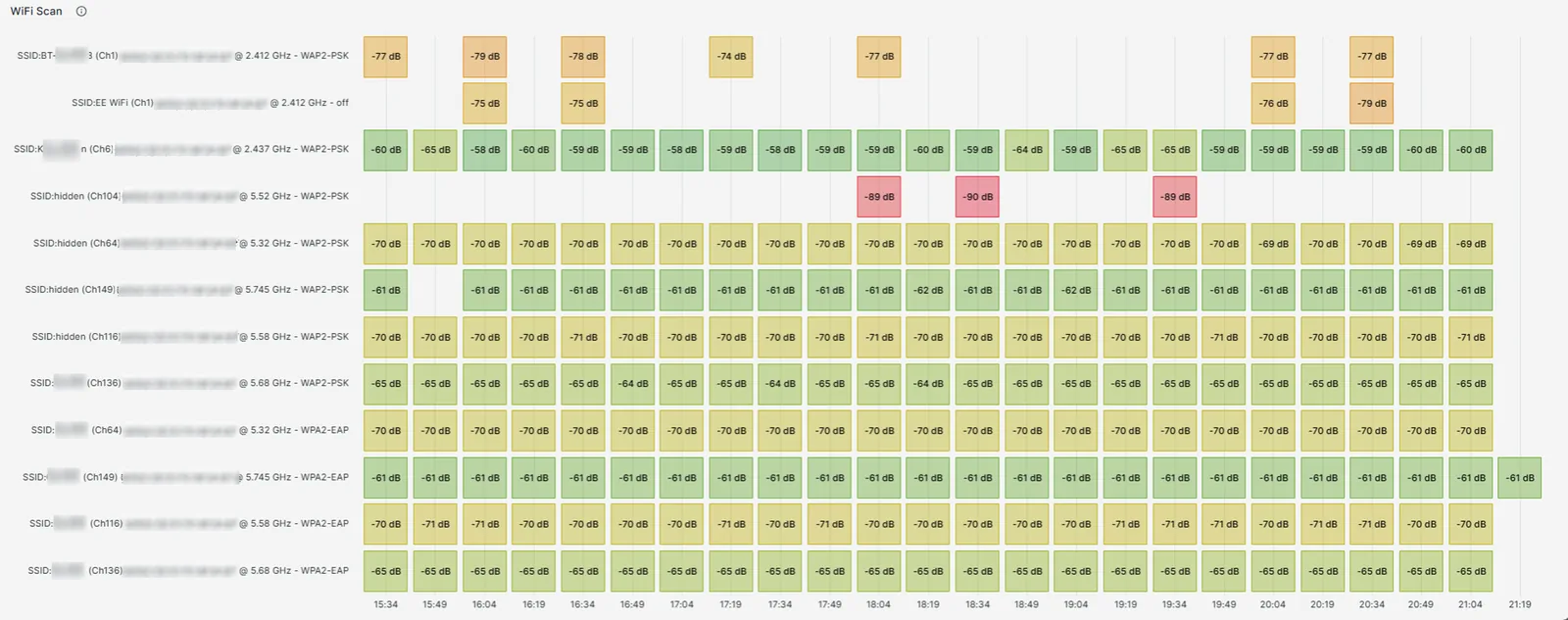

Everything one sensor knows about its Wi-Fi connection. Signal, quality, link rate and access point are measured every 15 seconds.

ModelA sensors also report noise and signal-to-noise ratio.

End-user devices

If you use the end-user device agent, these views show what each user's own Windows device experiences. Unlike a sensor, the agent reports only while the device is switched on.

Device list

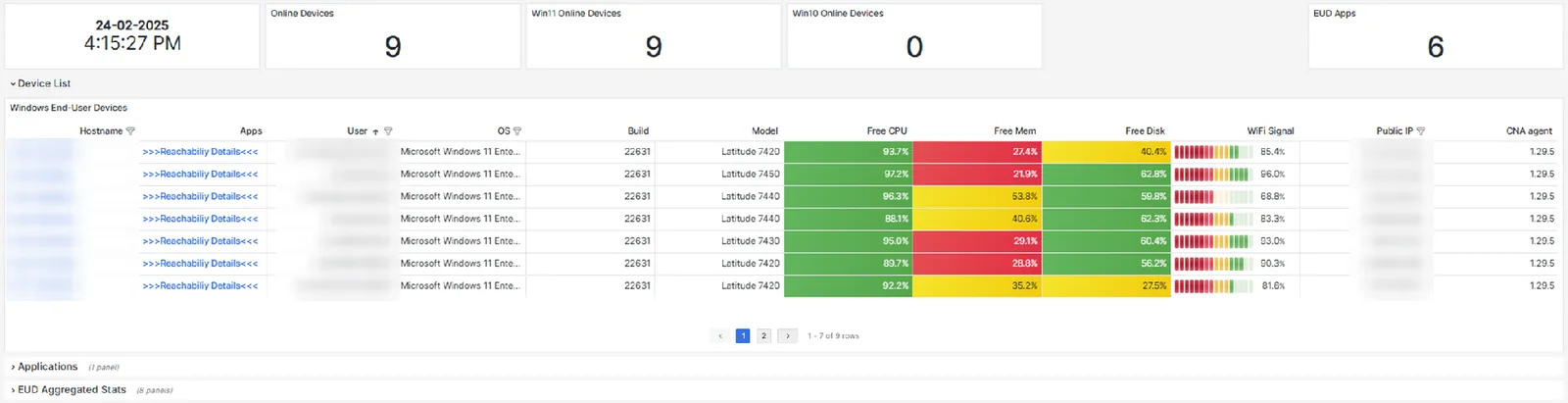

One row per device, with counts of devices reporting and applications monitored at the top.

• User, operating system, build and model of each device.
• CPU, memory and system disk as coloured cells, so a device running out of resources stands out.
• Wi-Fi signal as a coloured bar.
• Public IP address of the connection, which can be mapped to your offices so you can see who is working where.
• Agent version.

Below the list are application response averages from all devices and an overview of the estate's Wi-Fi, CPU, memory and disk.

Device detail

Open a device from the list. A device selector shows which devices are online, so you can switch between them without checking which are reporting.

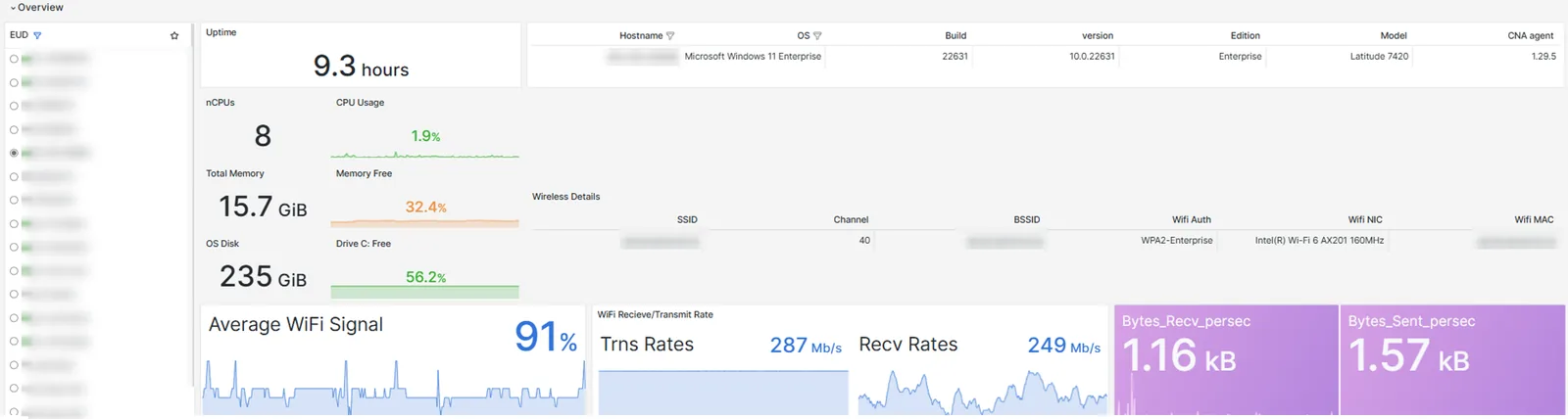

• The device: operating system, uptime, CPU, memory and system disk with their use.
• Connectivity: if you use Zscaler, the laptop agent shows the Zscaler client connection details.

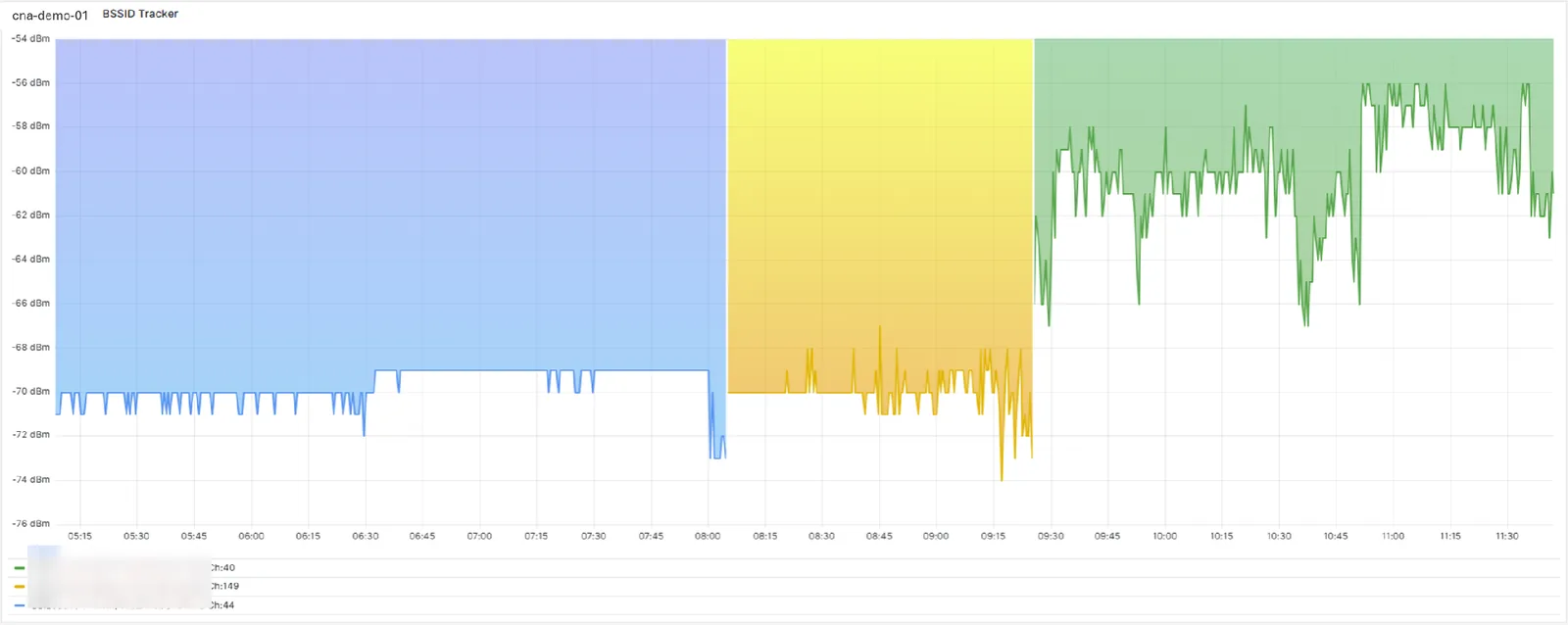

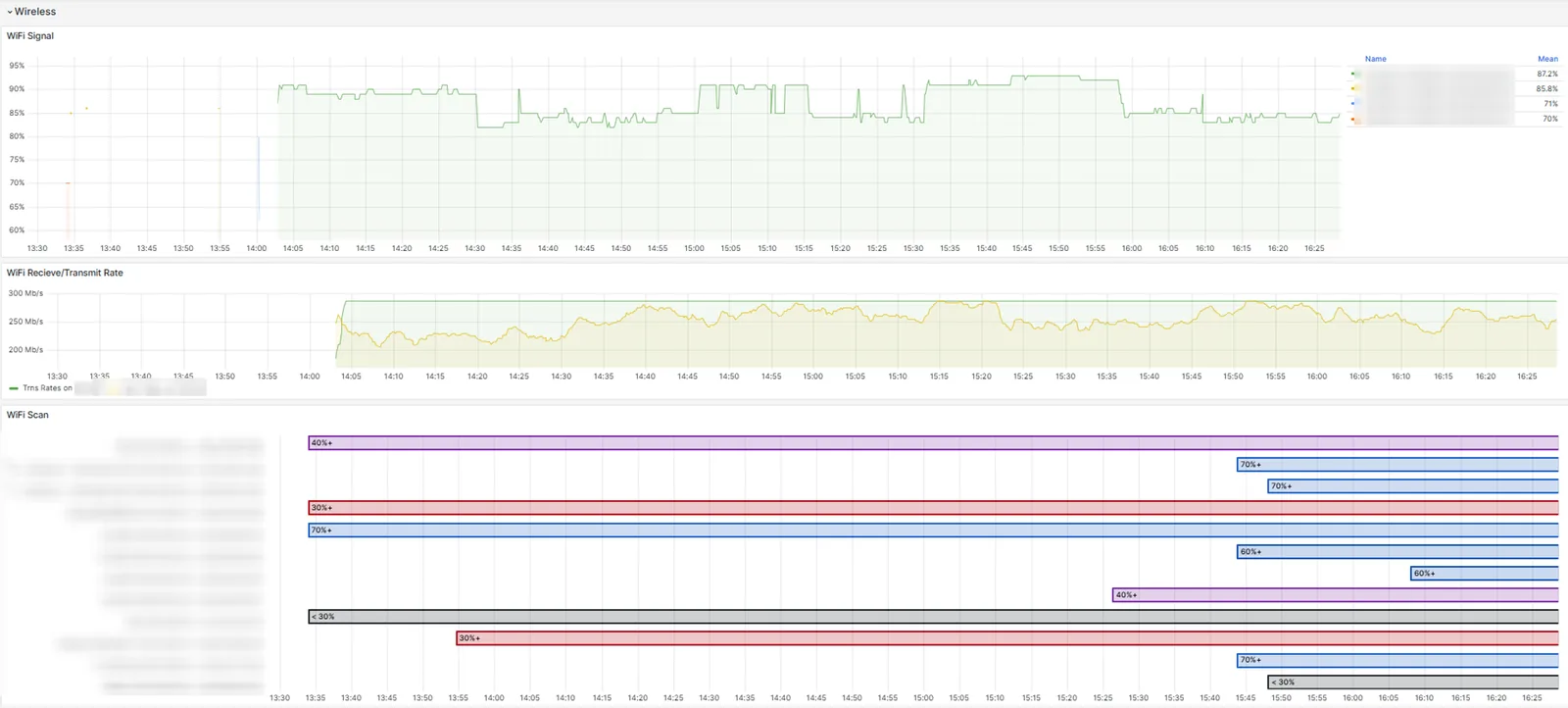

• Wi-Fi: signal, receive and transmit rates and traffic, with a timeline that also shows roaming between access points, and a scan of nearby networks every 15–20 minutes, kept for 24 hours.
• Network interface: throughput, packets per second, discards and errors.
• Resources: CPU, memory, disk and the processes running.

Application reachability per device

From a device, open its application reachability view: the same application, ping and network-path information as a site's application view, measured from that device. Compare it with the sensors at the same office to tell a device problem from a network one.

Servers

If you use the server and VM agent, the infrastructure views show CPU, memory, disk and network for your Linux and Windows servers, whether critical processes are running and how long each certificate has before it expires, on the same timeline as the office measurements. See Infrastructure monitoring for what is collected.

The AI assistant

Ask the portal what's going on, in plain English. The assistant answers from your own data: it can explain what a view shows and suggest what to check next. It helps people interpret the data. It does not detect anomalies or raise alerts by itself: alerts still follow the thresholds your administrators set.

Start with the questions your service desk asks every day, such as "what does the data on this view mean?" or "what should I check next?"

The assistant is included as standard for up to 3 users. More about it: The portal. How it handles your data: FAQ.

Working with dashboards

Time ranges use the time zone in your preferences.

Your account

Open your profile to manage the following.

Your preferences take precedence over your organisation's defaults.

The CNA portal is built on Grafana.
